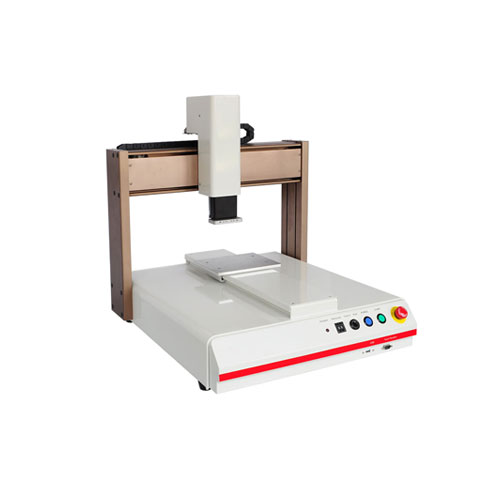

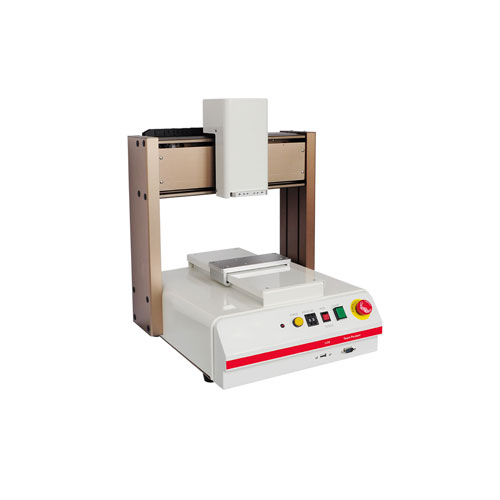

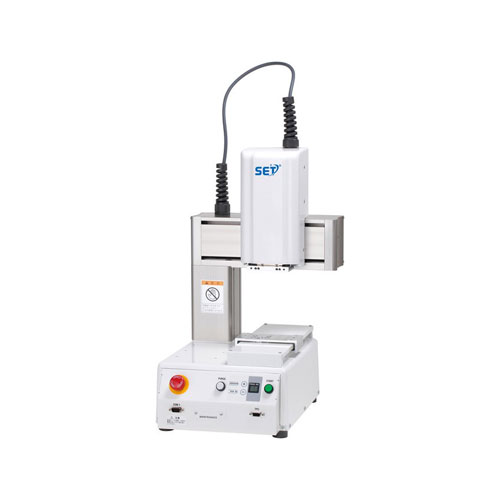

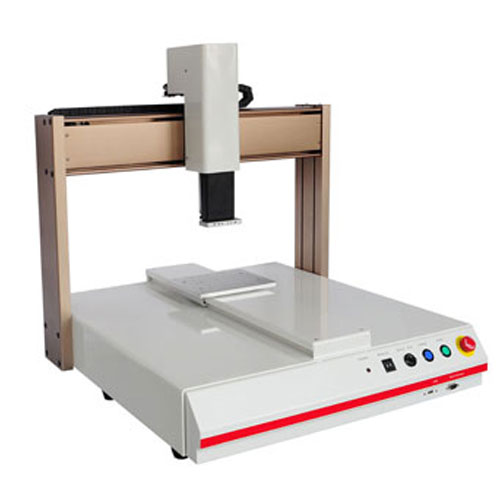

3-Axis Benchtop Robots
The 3-axis benchtop robots are designed to ensure precise fluid placement and positioning. When configured with a syringe, cartridge, or valve system, a high level of accuracy and repeatability is achieved. Specifically built for fluid dispensing processes, the robot software is user friendly and enables the creation of complex dispensing routines (dots, lines, circles, arcs, and fills) that can be set up and operational in just minutes using the teach pendant (included).
Specifications:
| Benchtop Working Area X/Y/Z (mm) | 200/200/50 300/300/100 400/400/100 500/500/100 600/500/100 |
| Speed X & Y/Z (mm/sec) | 500/350 |
| Repetitive Positioning Accuracy | +/- 0.02mm/Axis |
| Program Capacity | Min 100 programs, 4,000 points/program |
| Data Storage Type | CF Card |
| Byte | 32 Bit |
| Program Display | LCD |
| Motor System | Japan micro stepping motor |
| Mode of transmission | X/Y axis synchronous belt, Z axis precision ball screw |
| Interpolation Function | 3 axis |
| Teaching method | Teach Pendant |
| I/O Signal port | 8 Input/ 8 Outputs |
| External Control Interface | RS232 |
| Power Supply | AC 100-230V, 300W |
| Working Temperature | 10-40°C |
